Paihao High Lumen 7000 Ansi Lumens (Market Lumens is 10000) Laser Projector Bullet Point
1. High lumens projector series with many kinds throw ratio optional, like fisheyes lens.
2. Native resolution 1920*1200p, support 4K, with 0.67inch DMD chip;
3. Laser light source with multi-gravity Omni cooling technology of fast heat dissipation technology;

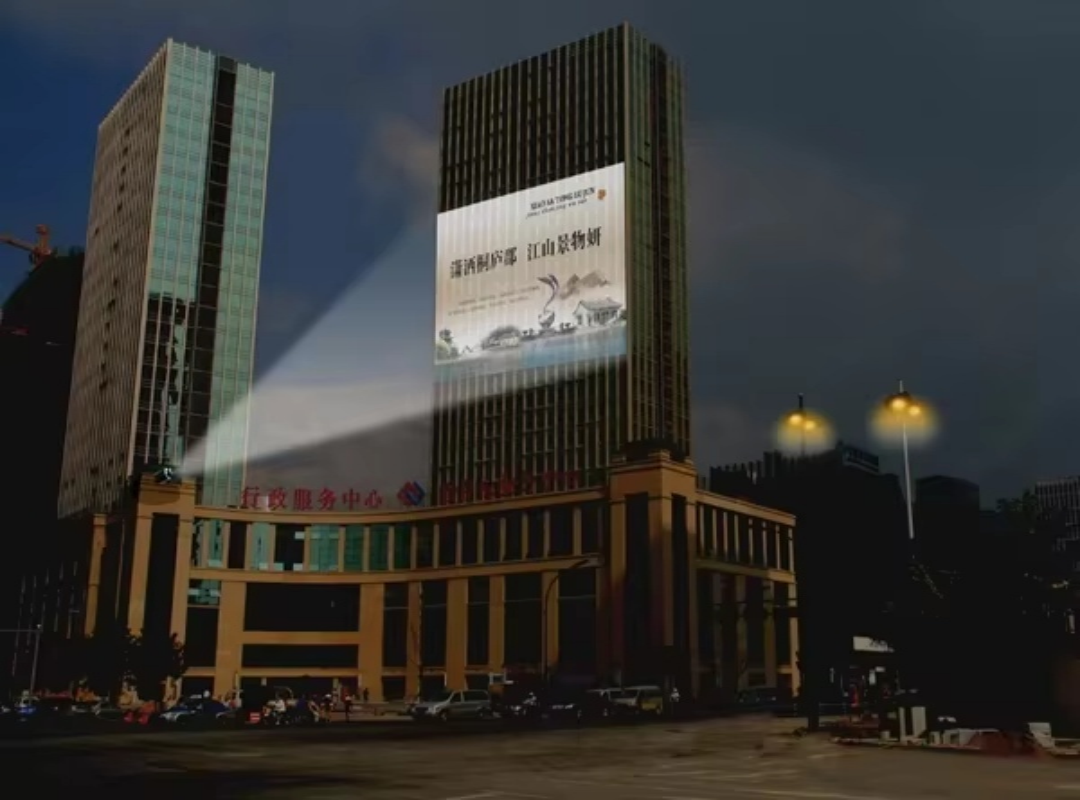

4. Brightness 7000 ansi lumens, idea for outdoor mapping and hologram projection, constant super high brightness, suitable
different situation;
5. Exceeding Rec.709 gamut with more vivid image;
6. 20000-40000 laser light life without light source maintenance;
7. Fully sealed optical module with dust proof; and up to 9 kinds electronic
lens to optional for different situation,support remote control focus and zoom in / out;
8. Support geometric correction without any external device, like barrel shape, arc shape, star shape,oyster shape, eye shape etc.
9. Support HD-Base T remote distance data transmission; 3G-SDI data transmission, 3D-sync signal input &output;
10. Support 720 degree installation and 24 hours * 7 days working time......
LU6600 Parameter Details
Projector Type: WUXGA Single Chip DLP Projector
Technology: 0.67'' DMD x1
Brightness: 7000 ansi lumens, market lumens is 10000 lumens.
Native Resolution: 2K resolution, 1920x1200p, support 4K
Aspect Ratio: 16:10；:4:3/16:9/2.35:1/1.88:1
Contrast ratio: 3000000:1（Mode：Brightness, Signal Source：VGA;Mode：STD, Zoom：Wide, Dynamic Black） Uniformity: >90%
Color Temperature: 3200/5500/6500/9300/
Native Laser Display Technology: Solid RGB Laser Light Source Typical Lifetime:40000 Hours
Electronic Lens:
R0：0.377:1（1.0X，Electric focus）
R1：0.76-0.95:1（1.25X Electric zoom/focus）
R2: 1.14-1.71:1（1.5X Electric zoom/focus）
R3:1.61-2.42:1（1.5X Electric zoom/focus）
R4:2.37-3.6:1（1.5X Electric zoom/focus）
R5:3.53-5.65:1（1.6X Electric zoom/focus）
R6:5.52-8.83:1（1.6X Electric zoom/focus）
R7: 180 degree fish eye lens.
R8: 1.22-1.55:1 Standard lens.
Lens Horizontal Shift: -20% to +20%
Lens Vertical Shift: -20% to +20%
Keystone: V: ±30°,H：±30°
Corner corection, fusion/smart graphics card(optional)：Arc/point correction/edge fusion function
Warping Support: Yes Maximum Input Bandwidth: 330MHz Maximum
Large Venue Projector Interface: .

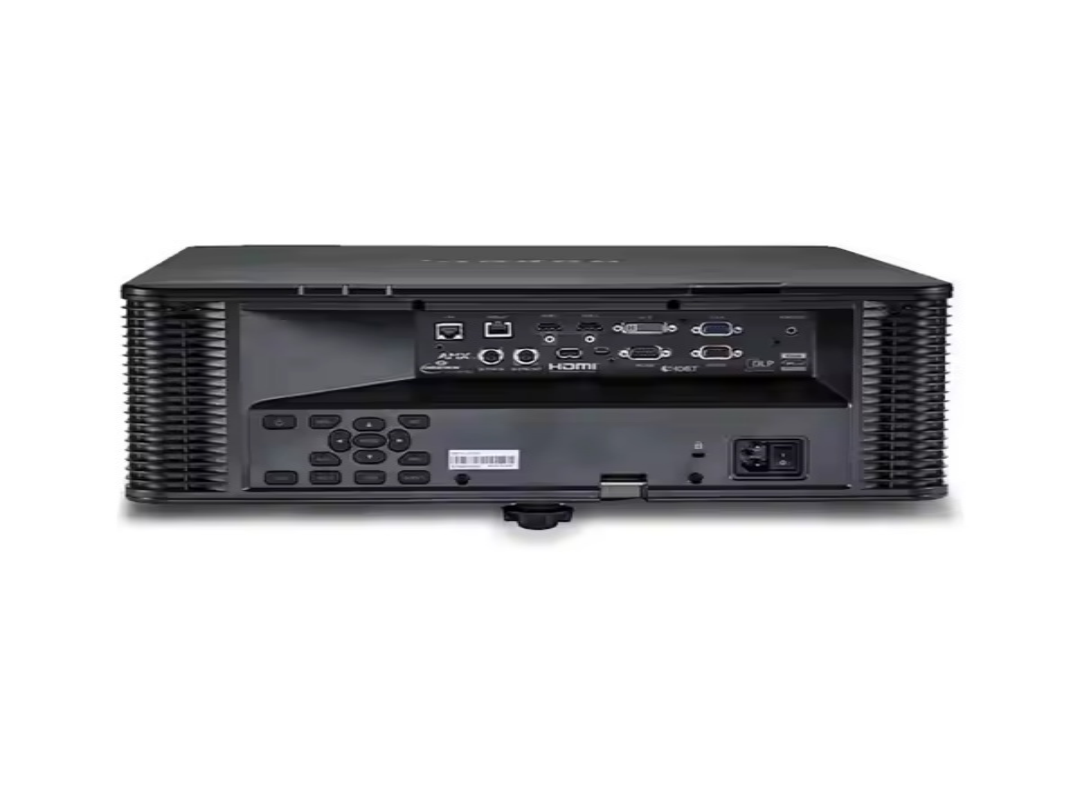

1×DVI-D 2×HDMI 1.4 1×15-pin mini-Dsub 1×HD-BaseT 1×Wired Remote 3.5mm 1×3D-Sync 1×15-pin mini-Dsub 1×3D-Sync 1×RJ45 1×RS232
Others
Power Input (Voltage): 100-240V (+/- 10%) , 50-60Hz.
Power Consumption: 720W
Standby Power Consumption: below 0.5W
Noise Level dB: 36dB
Sealed Engine: Sealed
720 Degree Installation: Support
3D Function: Active 3D;Passive 3D; Dual Input 3D
Working Temperature: 0-45°C
Storage Temperature: -10-60°C
Dimension DxWxH: 49×52×18cm
Packing list
Projector with standard lens x1, user manual x1, remote control x1, power cable x1.
